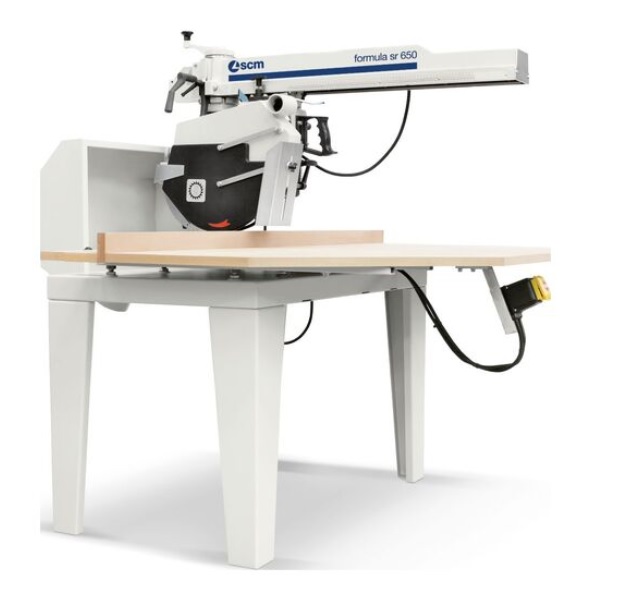

SCM Formula SR 650 Radial saw
The SCM formula sr 650 is a radial saw made of a heavy cast-iron structure, with 650 mm trimming capacity, that guarantees the maximum cutting precision.
Adaptability, versatility, cutting precision and easy maintenance make this product line an essential machine for daily use in any artisan workshop.
- Cutting unit with spring return system to increase safety
- Interchangeable sliding ways to reduce the machine setup times
- Rear extraction hood to always have a clean working environment
- Electronic motor brake
Additional Information
Column protection cover for a long-lasting functionalityThe mechanisms of which the machine is equipped, as the protection cover on the arm column support, protect the mechanical parts from dust, guaranteeing the best operation over time
The carriage with 8 bearings ensures precision and smoothnessThe 8 sliding bearings on the guides grant the best carriage smoothness and an optimal support for a perfect cutting result
Blade guard which ensures the absolute operator’s safety
Cast iron arm with steel interchangeable guides for maximum cutting precision
The cast iron structure provides the arm the maximum solidity and rigidity. The interchangeable sliding ways allow the operator a simple and rapid replacing, in case of wear, without direct intervention on the arm
| TECHNICAL FEATURES | ||
| Blade diameter | mm | 350 ÷ 400 |
| Blade tilting | -45° ÷ +45° | |
| Max. cutting depth with blade at 90°/45° | mm | 120/83* |
| Cross cut capacity | mm | 640 x 20 |
| Three-phase motor | 3kW (4hp) 50Hz | |
| Machine dimensions | mm | 1260x1140x890 |
| Gross weight | kw | 259 |
| Installation requiremens | ||
| Compressed air consumption | [Nl/ciclo] | – |
| Exhaust air consumption | [m3/h] | 205 |
| Exhaust air speed (dry shavings) | [m/s] | 20 |
| Installed motor power | [VA] | 3000 |
| CE version – voltage/frequency | 400EU /50 |
