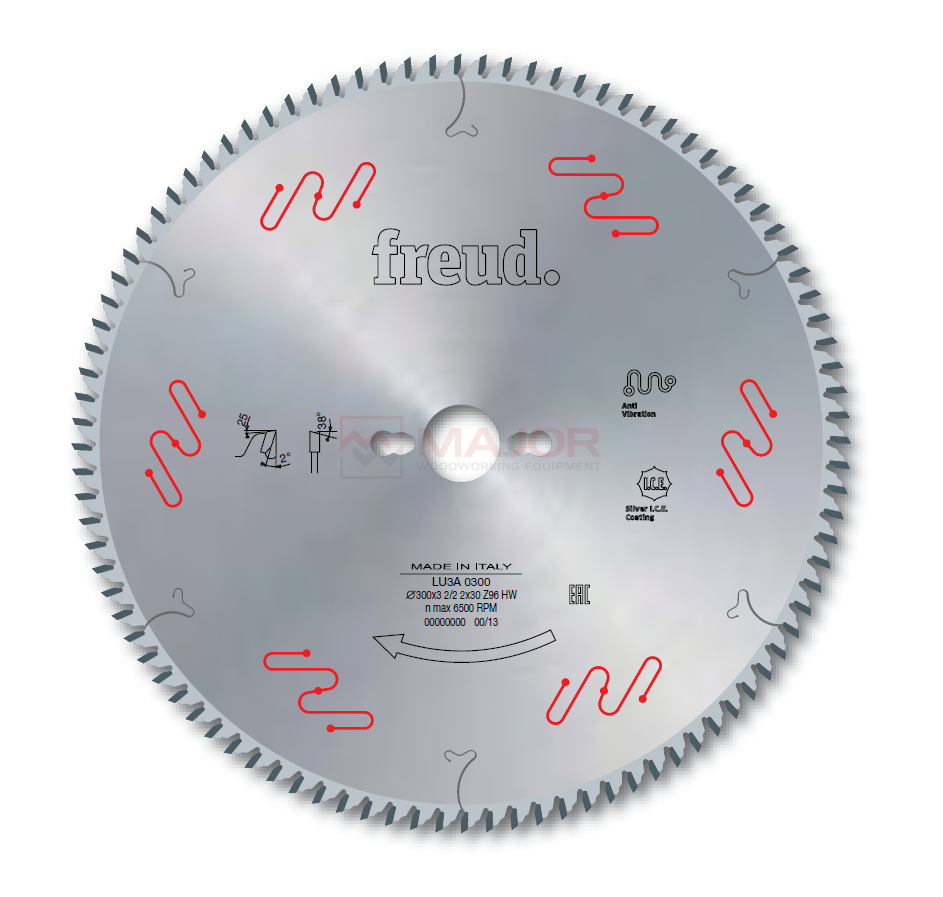

LU3A - Saw Blades for Melamine Panel Cutting High Grind No Scorer Required

To size bilaminated panels, with perfect finishing on both sides without the
employment of the scoring saw blade.

Machines

Circular vertical saws, panel-sizing machines, portable machines.

Features

ATB 38o tooth, with variable cutting angle according to the diameter.

Material

Bilaminated panels with extremely fine coatings,veneered panels.

$180.00$250.00

Clear

Additional Information

SKU D Bore B (w) b Z
LU3A 0200 250 30 3.2 2.2 80
LU3A 0300 300 30 3.2 2.2 96
LU3A 0400 350 30 3.5 2.5 108
CUTTING SPECS



Tooth features



Maximum depth of cut based on the blade diameter.

SPECIAL FEATURES

Reduced Friction: Silver I.C.E. Coating
  • A high performing and anticorrosive coating to maintain the blade temperature low during the working process.
  • The non-stick feature improves chip ejection and notably reduces resin build-up, significantly re-ducing friction and extending the life time of the blade.

Section view of the antivibration slots.

Improved Precision: Anti-Vibration Slots for the Perfect Finishing
  • Body slots laser cut with freud innovative technology.
  • Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.
