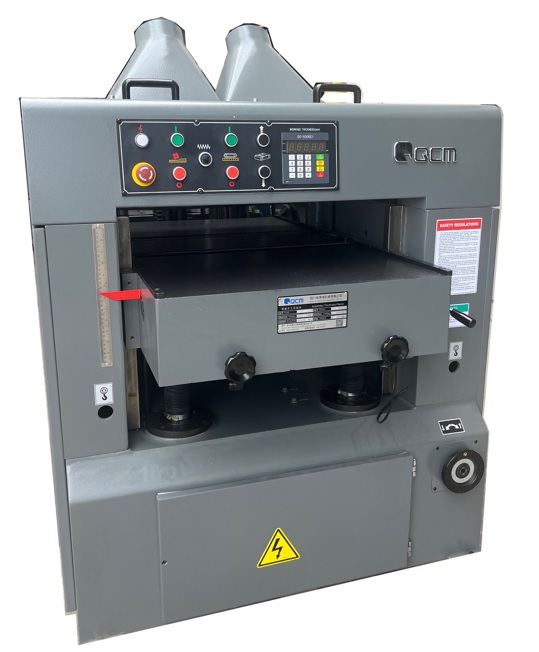

QCM-MBZ106DH Industrial Planer 630mm

Industrial 630mm Planer with  Helical 30 x 12mm Cutterhead. Just a Massive Industrial Machine weighing 1250kg.

  • Helical carbide inserts 30 x 12mm
  • Large 300mm Height of cut.
  • Massive cast iron construction throughout allows up to a 8mm cut.
  • Segmented infeed roller and sectional chip breaker.
  • Dual outfeed rollers assist with heavy stock.

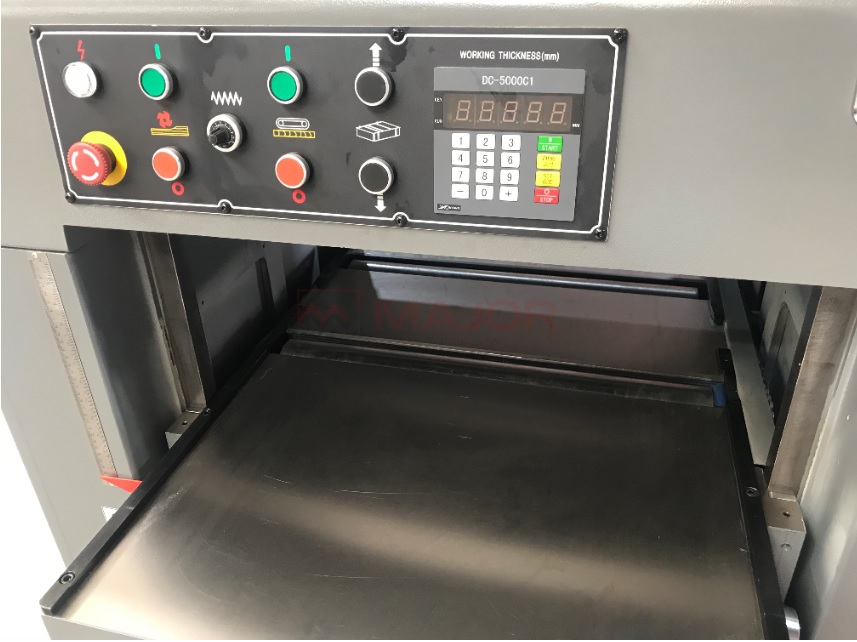

  • Front Operation Panel
  • Control panel with digital readout allows precise thickness settings.
  • Power assisted table.
  • Hinged access to cutter head.
  • Motor 10hp 415v
  • 2 x 150mm Dust Chutes



$15,900.00

Out of stock

Additional Information

Stock Number MBZ106DH
Maximum Stock Width 630mm
Maximum Stock Thickness 300mm
Minimum Stock Thickness 3mm
Minimum Stock Length 300mm
Dust Port Diameter 2 x 150mm
Minimum CFM Required 1600 CFM
Infeed Roller Diameter 100mm
Steel Outfeed Roller Diameter 100mm
Feed Speeds 32.5 m/sec
Bed Rollers 2, Adjustable
Table Size 630mm wide
Cutterhead Diameter 150mm
Cutterhead Speed 5000 RPM
Knives helical style 30 x 12mm
Footprint 115 x 130cm
Table Support Dovetail
