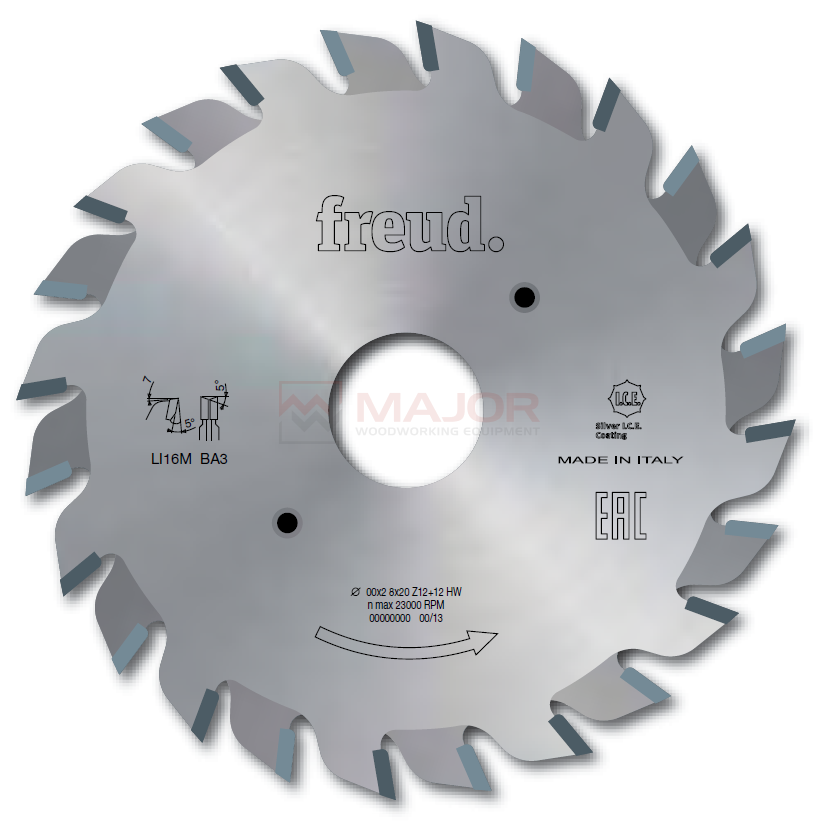

LI16M - Adjustable scoring saw blades

To score the coating on bilaminated panels.

Machines

Horizontal panel sizing machines that do not allow the adjustment
of the scoring depth. Max scoring depth 2mm.

Features

ATB tooth 5o with positive cutting angle.

Material

Bilaminated chipboard or MDF.

$160.00

Clear

Additional Information

SKU D Bore B (w) Z
LI16M GA3 80 20 2.8-3.6 12+12
LI16M BA3 100 20 2.8-3.6 12+12
LI16M BB3 100 20 2.8-3.6 12+12
LI16M CA3 105 20 2.8-3.6 10+10
LI16M AA3 120 20 2.8-3.6 12+12
LI16M AB3 120 22 2.8-3.6 12+12
LI16M EA3 125 20 2.8-3.6 14+14
LI16M EB3 125 22 2.8-3.6 14+14
LI16M DA3 125 20 4.0-4.7 20+20
LI16M PF3 120 50 2.8-3.6 12+12
CUTTING SPECS



Tooth features



SPECIAL FEATURES

Reduced Friction: Silver I.C.E. Coating
  • A high performing and anticorrosive coating to maintain the blade temperature low during the working process.
  • The non-stick feature improves chip ejection and notably reduces resin build-up, significantly re-ducing friction and extending the life time of the blade.

Section view of the antivibration slots.

Improved Precision: Anti-Vibration Slots for the Perfect Finishing
  • Body slots laser cut with freud innovative technology.
  • Also available with thermoplastic polyurethane filling, that considerably reduces vibration and minimizes noise.
